Alkaline Water Electrolysis Hydrogen Production

Release Date:2023-03-20 10:55:08

product details

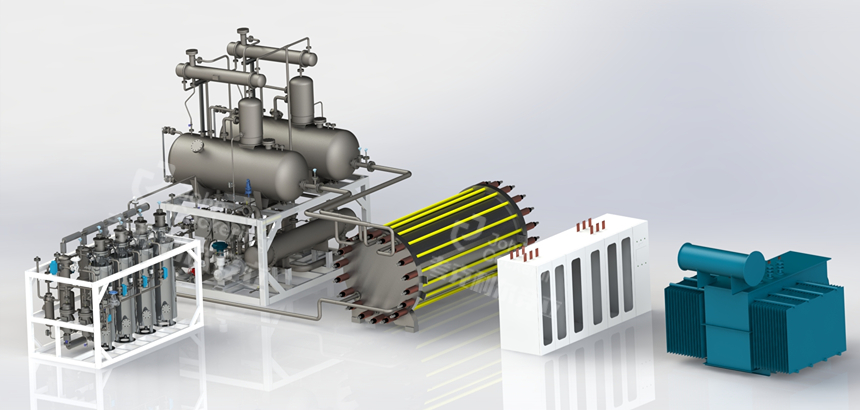

1. Main equipment composition: electrolytic cell auxiliary equipment frame.

2.The parts of the main equipment: electrolyzer,auxiliary equipments frame.

3.The parts of the auxiliary equipment: water supply tank, lye tank and water supply pump.

4.The parts of the electric control equipment:rectifier cabinet, control cabinet,distribution cabinet and transformer.

5.The type of electrolyzer :Pressed filter bi-polar filter.

6. Features:compact construction,operation convenient,advanced design, performance reliability,ultra pure gas,adjustable output,on-off free, lower power consumption,easy installation,advanced control, simple maintenance,longer life,easy operation, no pollution. Among them, the electrolytic cell, auxiliary frame and purification frame of 2-30m³/h hydrogen production equipment can be integrated design;

7.  Widely used: electric power, electronics, metallurgy, building materials, chemical, meteorology, aerospace and new energy, etc.

20230403110557


technical parameter

Model of hydrogen production unit

Hydrogen production

Operating pressure(MPa

DC current(A

DC voltage(V

DC power consumption m³

Electrolyser appearance(mm

electric tank KG

Outline of hydrogen production frame(mm

DQ-2/3.2

2

3.2

500

28

5

Φ664×1274×762

1300

2000×1500×3200

DQ-5/3.2

5

3.2

500

48

4.9

Φ664×1578×762

1500

2000×1500×3200

DQ-10/3.2

10

3.2

920

52

4.9

Φ864×1725×964

2200

2000×1500×3200

DQ-20/3.2

20

3.2

1670

58

4.8

Φ1048×1961×1162

3800

2000×1500×3200

DQ-30/3.2

30

3.2

1670

86

4.8

Φ1048×2387×1162

4500

2000×1500×3200

DQ-40/3.2

40

3.2

2480

78

4.7

Φ1260×2265×1366

6500

2500×1500×3500

DQ-50/3.2

50

3.2

2480

94

4.7

Φ1260×2509×1366

7500

2500×1500×3500

DQ-60/3.2

60

3.2

2480

114

4.7

Φ1260×2813×1366

8600

2500×1500×3500

DQ-80/1.6

80

1.6

4600

80

4.6

Φ1560×2366×1366

8500

3000×1700×5200

DQ-100/1.6

100

1.6

4600

102

4.6

Φ1560×2670×1366

10000

3000×1700×5200

DQ-150/1.6

150

1.6

4600

156

4.6

Φ1560×3400×1366

12000

3000×1700×5200

DQ-200/1.6

200

1.6

6600

142

4.5

Φ1790×3150×1926

15000

3000×1700×5200

DQ-250/1.6

250

1.6

6600

174

4.5

Φ1790×3700×1926

18000

3400×1900×4320

DQ-300/1.6

300

1.6

6600(8200)

210(170)

4.4

Φ1830×4355×1978

25000

3400×1900×4320

DQ-350/1.6

350

1.6

6600(8200)

242(196)

4.4

Φ1830×4835×1978

28000

3400×2200×4320

DQ-400/1.6

400

1.6

6600(8200)

276(224)

4.4

Φ1830×5315×1978

30000

3500×2200×4320

DQ-500/1.6

500

1.6

8200

280

4.4

Φ2036×5620×2178

34000

3700×3500×5100

DQ-800/1.6

800

1.6

10200

376

4.4

Φ2250×6880×2400

40000

4000×3650×5100

DQ-1000/1.6

1000

1.6

10200

468

4.4

Φ2250×8200×2400

46500

4000×3900×5400

DQ-1200/1.6

1200

1.6

10500

548

4.4

Φ2240×5200×2281

44500

4200×4000×5400

DQ-1500/1.6

1500

1.6

10500

684

4.4

Φ2240×6100×2281

51500

4200×4200×5600
